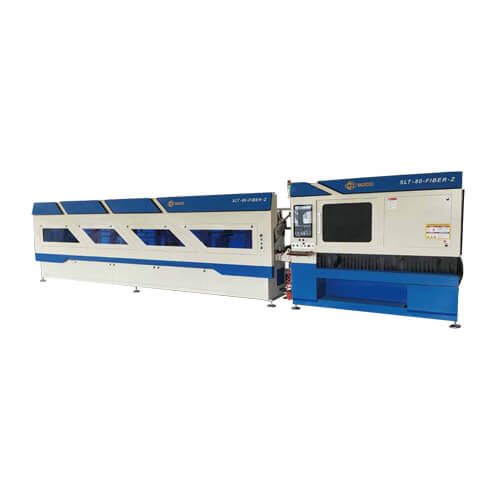

SLT-80-FIBER-Z<br>(6-10 Axis Automatic Tube Laser Cutting Cell)<br>OD 80 mm

SLT-80-FIBER-Z
(6-10 Axis Automatic Tube Laser Cutting Cell)
OD 80 mm

The Features :

  • Fully automatic tube cutting cell.
  • Servo Driven (6~10 Axis) for automatic adjustment between sizes, files and parameters to minimize setup time and operational hazards (*).
  • Maximum O.D. up to OD 80 mm (3”) and Minimum OD as small as 12 mm (1/2”).
  • Wall thickness up to 4 mm (1/6”) in Mild Steel and 2.5 mm (1/13”) in Stainless Steel and Aluminum (1.5kW).
  • 6 Meters Bundle Loader with automatic tube OD setup, and 6 Meters Rack Type Loader.
  • Suitable for mild steel, stainless, aluminum, and various traditionally hard to cut materials.
  • Set up for Air Cutting (Standard) or Nitrogen cutting (Optional).
  • Used for cutting various types tube shapes, such as: Round, Square, Rectangular and Flat Oval Tubes.
  • Typical Working Processes include: Cutting, Angle Cutting, Notching, Hole Making, Slotting, Tabbing
  • Working Steps and Performance : Loading + Feeding and Rotation + Cutting + Unloading. (*) Different clamping tools are required for each O.D.

Categories: ,

Features

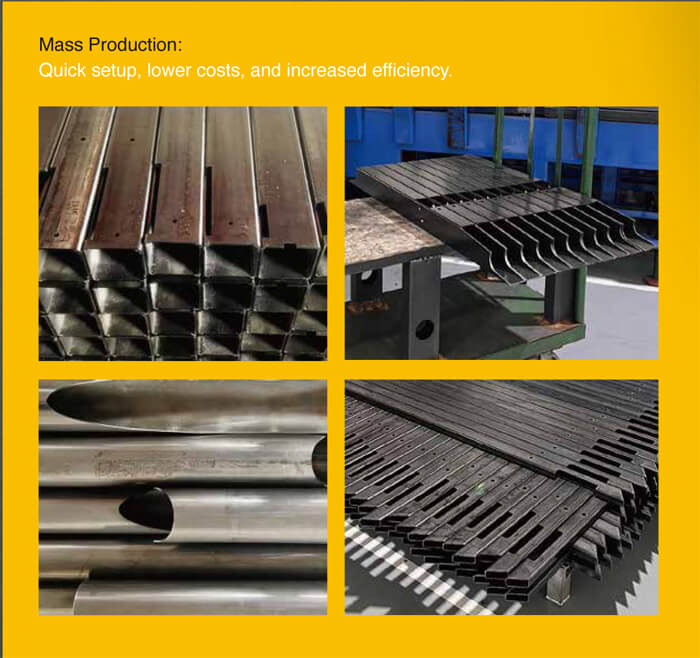

Mass Production
Quick setup, lower costs, and increased efficiency.

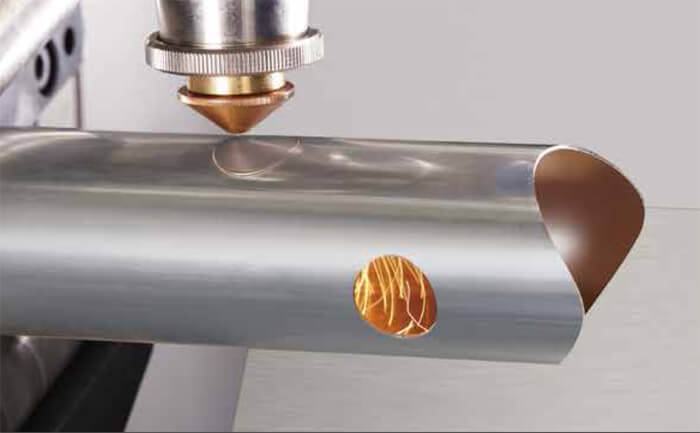

Cutting of Various Tubes Shape:
Round, square, rectangular and elliptical tubes, as well as mild steel, stainless, and aluminum.

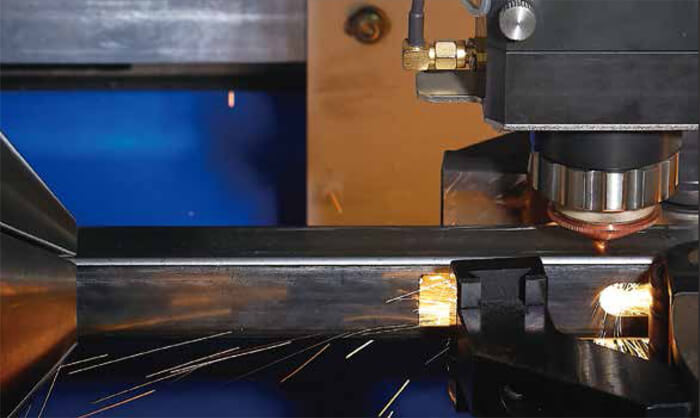

ADVANCED LASER CUTTING TECHNOLOGY


High-speed and Precise Cutting technology:
Repeatable precision is ±0.03mm, and Rotational accuracy is ±0.1º

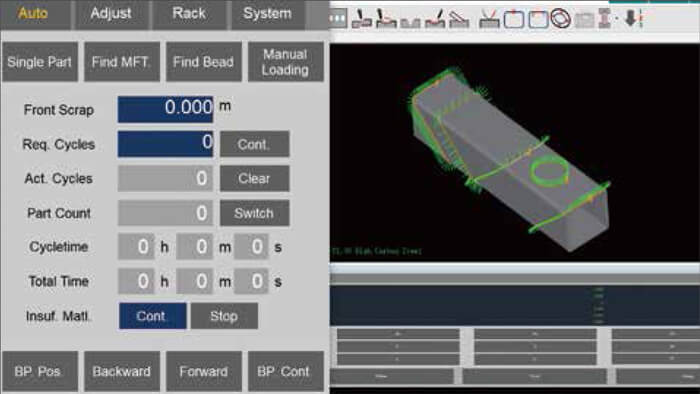

SOCO i2 ® CNC Controls:
User Friendly + Intuitive Interface under Windows OS. And easily create the desired part and convert it into cutting paths.

SOCO i2 ® CNC Controls:

  • User Friendly + Intuitive Interface under Windows OS.
  • Built-in library with cutting parameters for various materials, sizes and thicknesses.
  • Self-Diagnostics system for maximum safety and Quick Troubleshooting.
  • Parts Nesting System Functions to maximize materialutilization + minimize wastage.
  • Built-in Interface to facilitate the file and programs transfer and management.
  • Ability to create files from scratch right at the machine in a single interface.
  • SOCO CAD-CAM: Easily create the desired part and convert it into cutting paths.
  • Ability to import 3D files in STEP format.

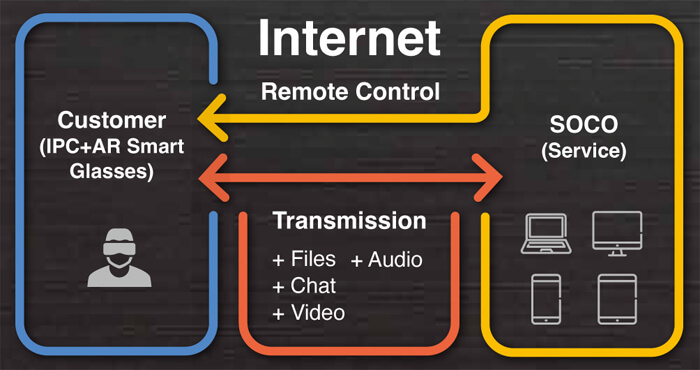

SOCO IRMS (Internet Remote Monitoring System)
Maintenance, Troubleshooting and Diagnostics. Live Support from Anywhere, Anytime.

SOCO IRMS (Internet Remote Monitoring System):
Maintenance, Troubleshooting and Diagnostics

  • LIVE: Ability to connect to SOCO Laser System using Mobile Phone, Laptop or Tablet to monitor, edit and troubleshoot.
  • On-screen I/O table with live signals showing which machine parts are active / inactive for troubleshooting ease, and ability to save screenshots.
  • On screen self-diagnostics with explanation of potential errors and solutions.
  • Maintenance System: ability to monitor and check machine maintenance list.
  • Ability to remotely update SOCO i2 Controls with latest parameters, new features and cutting database.

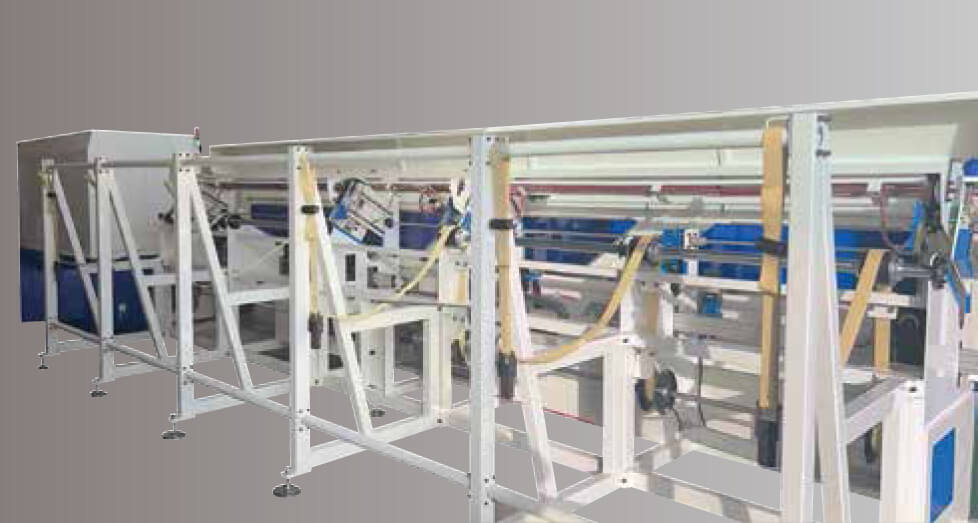

Bundle Loader (MB6) Rack Type Loader (M6)

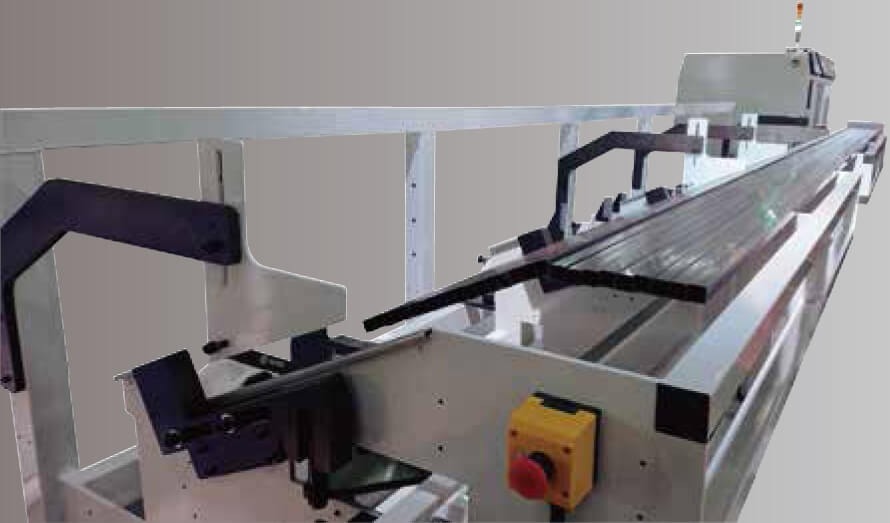

Rack Type Loader (M6)

Technical Data

Model Cutting Capacity (mm) Axis Laser Source (Fiber Laser) Interested

SLT-80-FIBER-Z+M6 (Rack Type Loader)

 OD 12 ~ 80 6 1.5 kW (Optional : 2 kW or 3 kW) Inquiry

SLT-80-FIBER-Z+MB6(Bundle Loader)

 OD 12 ~ 80 10 1.5 kW (Optional : 2 kW or 3 kW) Inquiry
