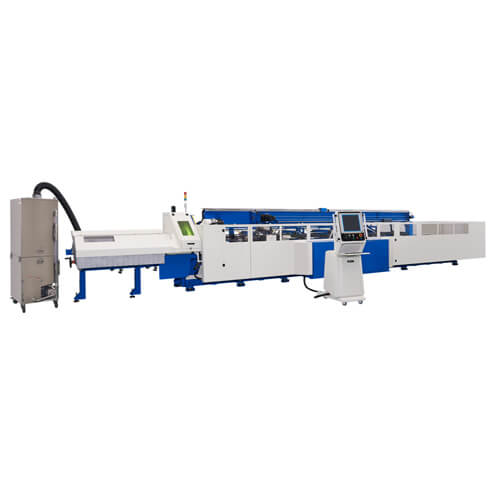

SLT-RoundCut-100<br>(Tube Laser Straight Cutting, Lengths from 2 mm to 2 m)

SLT-RoundCut-100
(Tube Laser Straight Cutting, Lengths from 2 mm to 2 m)

Products Description
Blade-Free, High Accuracy, and Decreased Wastage: the SLT-RoundCut-100 is a powerful partner in your tube fabrication.
Great Flexibility
With a cutting capacity up to OD 101.6 mm (4″) and cutting lengths from 2 mm up to 4.5 meters (14.76′), the SLT-RoundCut-100 serves many industries such as automotive, furniture, construction, aerospace, and healthcare.
Tool-Free Cutting: No Saw Blades, No Resharpening, and Eliminate Saw Blade Management Issues
While in the traditional cutting methods, the saw blade life is limited, and you need to re-sharpen or replace the saws, lasers do not wear out during cutting.  A laser-cutting machine requires minimal maintenance and lasts for many years.
Minimal Material Waste
The tube laser cutting process is highly efficient because it uses most of the material without losses caused by traditional cutting tools.  This allows cutting lengths as short as 2 mm and “0 mm” crop wastage for exact raw material lengths.
Cutting Hard Materials at the Lowest Cost per Cut
For higher-grade materials, such as stainless or high-strength steel and alloys, the cost per cut is drastically reduced, as laser cutting performance, unlike saw blades, is not reduced regardless of material hardness.
Superior Results

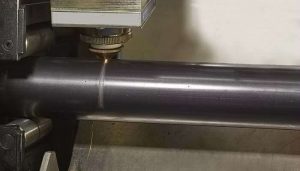

The SLT-RoundCut-100 processes parts in mere seconds with the highest levels of length precision, with length tolerances as low as +/- 0.05 mm.  With a contactless system, material deformation and deburring are also minimized.

Categories: , Tags: , ,

Features

Tool-Free Cutting: No Saw Blades, No Resharpening

  • No Saw Blades – Fiber Laser Technology
  • Cuts any Material Hardness or Tensile Strength
  • Lowest Cost per Cut
  • Minimal Setup Time + High Output
  • Minimal Tube Deformation and Surface Marks
  • Low Maintenance

Fast and Automation Ready

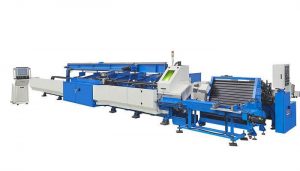

Equipped with an automatic loading system and multiple CNC controlled axis, the SLT-RoundCut-100 series offers full automation and ultimate productivity.  It can also be connected to other SOCO solutions, such as Tube Chamfering, Length Measuring, and Stacking Systems.

Capability and Features

  • Full Automation with Automatic Magazine Loading + Feeding + Cutting
  • SOCO IRMS For Remote Monitoring and Service
  • Capacity: Ø 12 to Ø 101.6 mm (Round Tubes)
  • Cutting Lengths: From 2 mm ~ 500 mm (Standard) and up to 4.5 Meters
  • Laser Power: 1 kW (Standard). 700 W and 2 kW is optional.
  • Automatic Separation of First and Last Workpieces
  • It may be connected to other SOCO Systems for Further Automation

Great Flexibility,Cutting Lengths from 2 mm up to 4.5 meters
A tube laser system dedicated to straight cutting, SLT-RoundCut-100 is a flexible solution for metal fabricators for cut-to-length applications in high length accuracy and a wide range of materials. With a cutting capacity up to OD 101.6 mm (4″) and cutting lengths from 2 mm up to 4.5 meters (14.76′), the SLT-RoundCut-100 serves many industries such as automotive, furniture, construction, aerospace, and healthcare.

i2® (intelligent interface) System
SOCO’s i2 CNC Controls allows importing 3D CAD files and complete assembly models, as well as from CMM systems.  With tooling library functions and full bending cycle simulation, fabricators can program complex parts in less than 5 min.

Full Control: Anywhere, Anytime

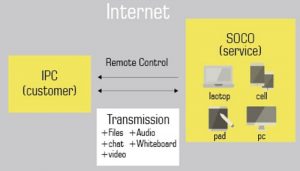

With SOCO’s IRMS (Internet Remote Monitoring System), you can connect remotely to the SLT-RoundCut-100 from any device with Internet access for live monitoring and troubleshooting.  You can also customize alarms for machine maintenance and stoppage, have a detailed list of maintenance items by type and frequency, and access maintenance records by user and time.

Video

Technical Data

Model Cutting Capacity (mm) Axis Laser Source (Standard) Interested
SLT-RoundCut-100 12 ~ 101.6 4 1 kW Inquiry
