(Manual Loading)
OD 180 mm

Products Description

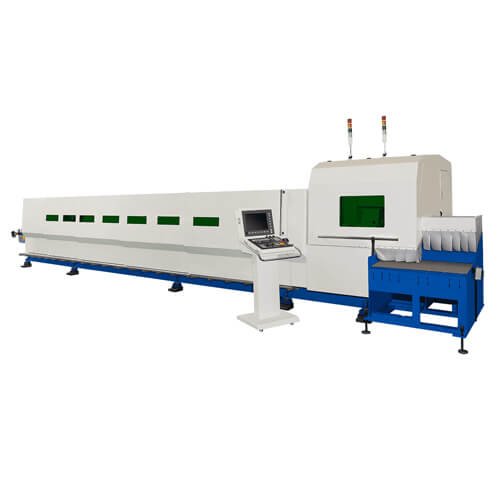

OD 180 mm Laser Tube Cutting capacity + 5 Axes
Automatic Laser Tube Cutting and Manual Loading

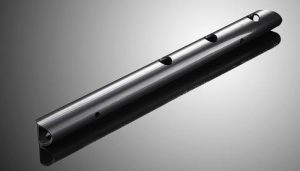

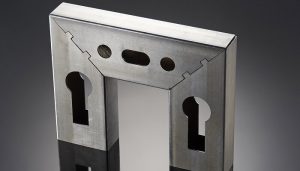

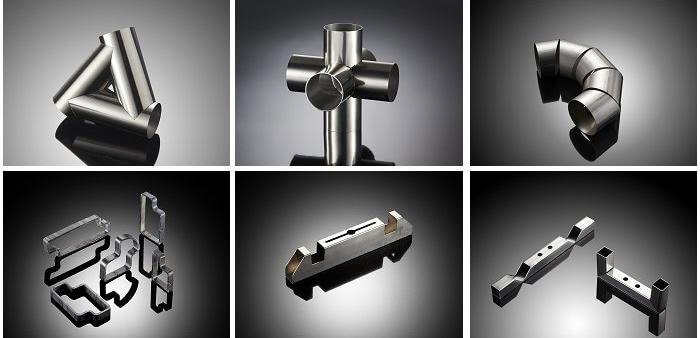

Cutting round, square, rectangle and various profile shapes

  • Cutting capacity up to OD 180 mm x 4t (Mild Steel)
  • Automatic laser tube cutting + Manual loading
  • 5 Electric Axis
  • Equipped with 700W Laser Source (Standard)
  • Cutting Lengths up to 1,000 mm (longer lengths by request)
  • SOCO i2 (Intelligent Interface) 3D operation software

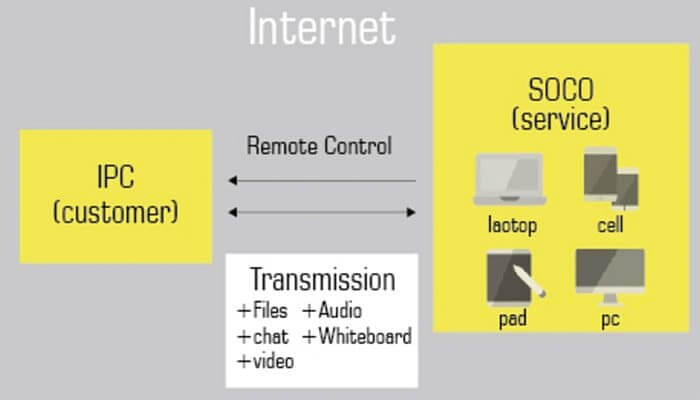

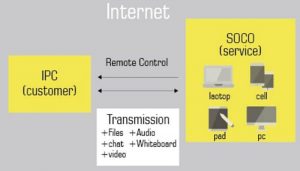

SOCO IRMS (Internet Remote Monitoring System)

  • True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS, or Android) from any location with Internet Access.
  • Actual Screen + Real-Time Access to laser tube cutting file, with full ability to see, edit and troubleshoot all user-created programs.
  • Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  • Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login;

  • Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions
  • Webcam Ready for Video Monitoring (Optional)

Seam Detector for Tubes and Profiles (Optional)

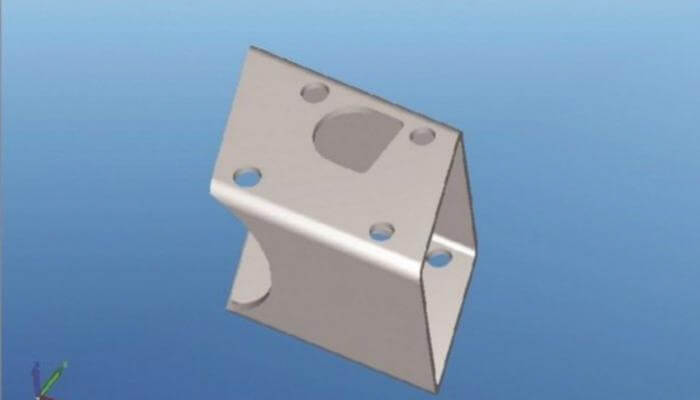

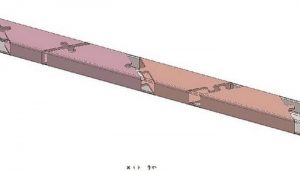

Built-in library for parts design and assembly processes


Technical Data

Model Cutting Capacity (mm) Axis Laser Source (Standard) Interested
SLT-180-FIBER-FA OD 20 ~ OD 180 5 700W Inquiry
