Features

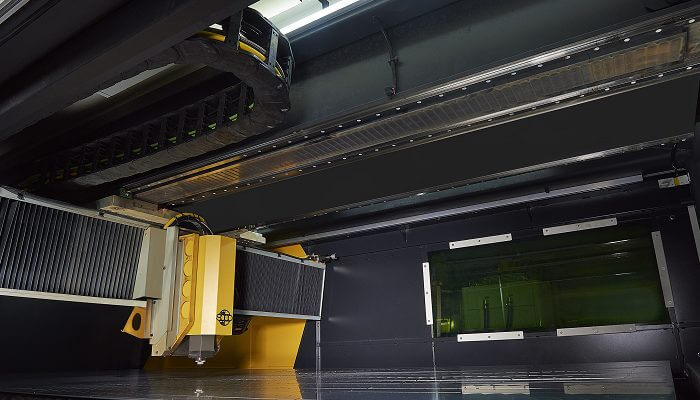

All-Linear = Superior Design
This patented design and technology ensure the highest acceleration, cutting speed, and accuracy in laser cutting. The contactless cutting process brings continuous accuracy over time, no wear-out, and low maintenance costs.

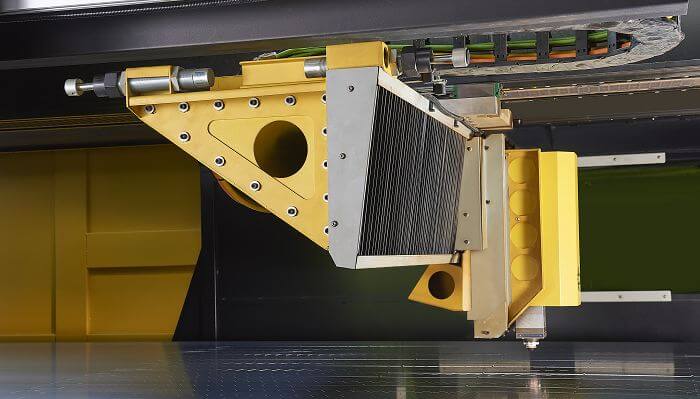

Direct Drive Linear Motors XYZ + Close Looped Controls
With all 3 axes driven by linear motors, there are no axis synchronization issues typically associated with gantry-style machines or with hybrid types (servo + linear motors).
Speeds may reach up to 250 m/min and acceleration 2.5G. Each axis is equipped with optical scales, with a resolution of 0.5 µm, resulting in precise positioning of the cutting head and high accuracy cutting.

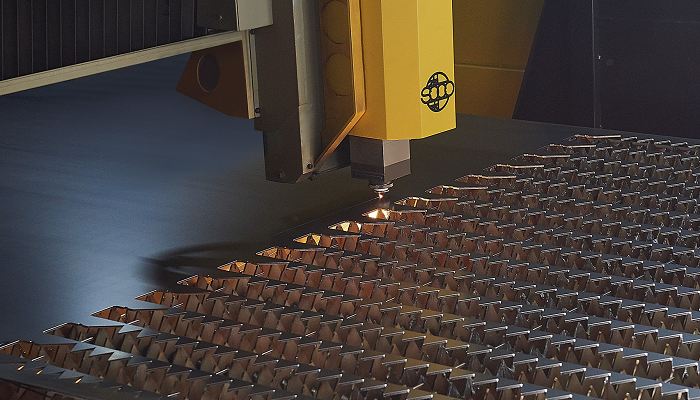

Max Utilization of Fiber Laser Technology
The combination of Linear Drives design and Fiber Laser technologies is ideal in achieving maximum cutting efficiency and the lowest cost per part.

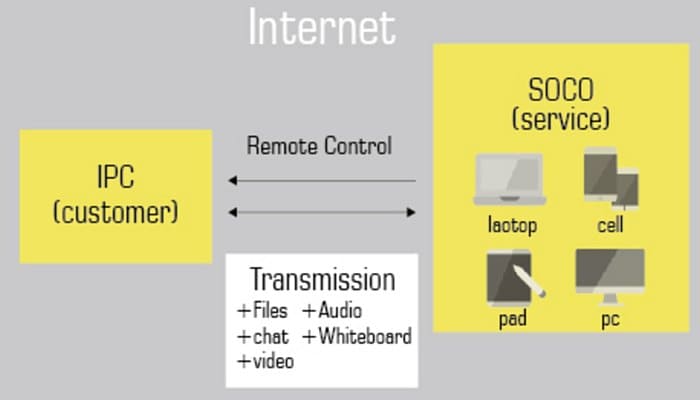

SOCO IRMS (Internet Remote Monitoring System)
- Live Remote Access from Anywhere: Connect to i2 Controls using any mobile device, computer, or laptop (Windows, iOS, or Android) from any location with Internet Access.
- Actual Screen + Real-Time Access to laser tube cutting file, with full ability to see, edit and troubleshoot all user-created programs.
- Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
- Maintenance Scheduling Systems:
– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login;
- Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions
- Webcam Ready for Video Monitoring (Optional)

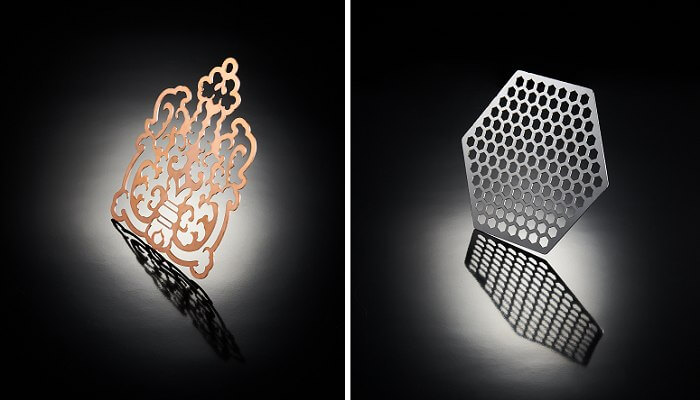

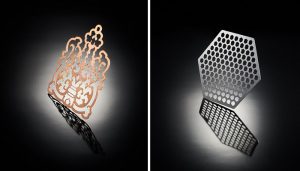

Sample of Sheet Metal Laser Cutting

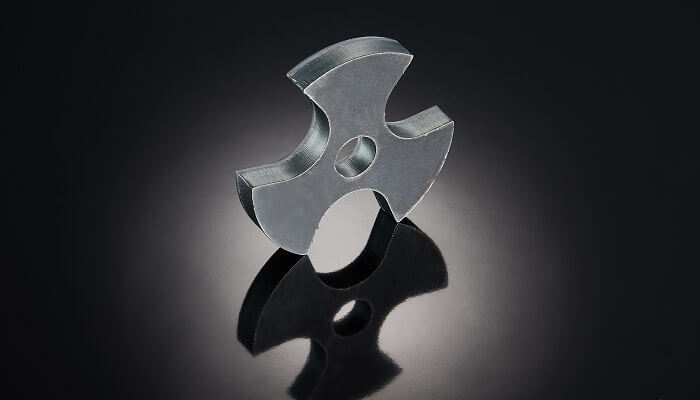

Sample of Sheet Metal Laser Cutting
