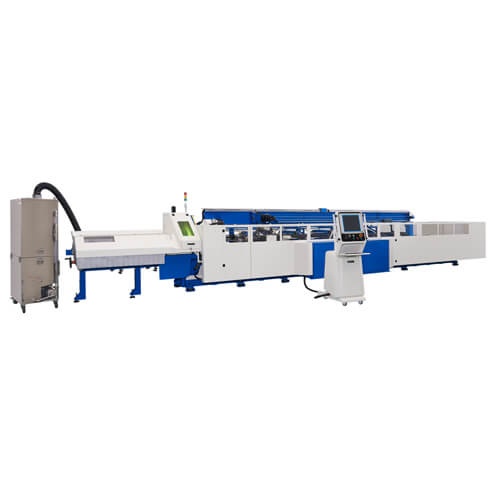

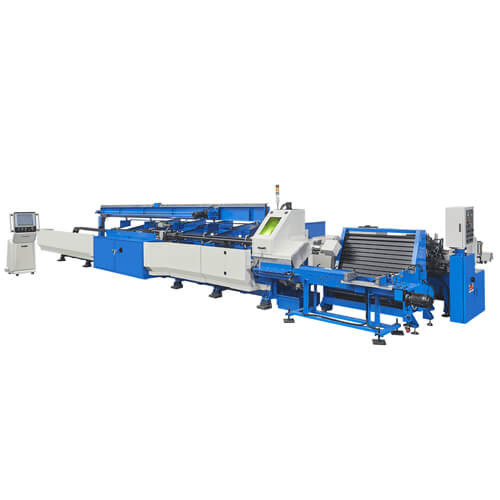

SLT-RoundCut-SS
(Tube Laser Straight Cutting, Short Lengths)

Products Description
Fully Automatic Tube Laser Cutting Line for Mild Steel, Stainless Steel, Aluminum, and High Tensile Strength Round Tubes

  • Suitable for cutting Stainless and High Tensile Strength Parts, such as Impact Beams, Chassis Cross Bar Tubing, and Scaffoldings.
  • Automatic separation of first and last workpieces
  • Safety covers operational safety and noise reduction
  • Capacity up to OD 101.6 mm Round Tubes
  • Cutting Lengths from 2 to 500 mm (1 meter is optional)
  • Touch Screen Graphical Controls with Automatic Recommendation of Cutting Parameters. 3 to 5 minutes of setup time between most tube sizes
  • Together with SOCO’s i2® (Intelligent Interface) Controls and Touch Screen, the SLT-RoundCut-ss offers precision and versatility, while allowing for quick setup time between different tube materials, sizes, and lengths.
  • Standard with 1kW Laser source (2kW is optional)
  • Standard with Rack Loader (6.5M tube length). Optional 6.5 Meters  and 8.5 M Bundle Loader
  • Dust Vacuum (Optional)
  • This machine can be connected to other SOCO solutions, such as Tube Chamfering and Deburring

Categories: ,

Features

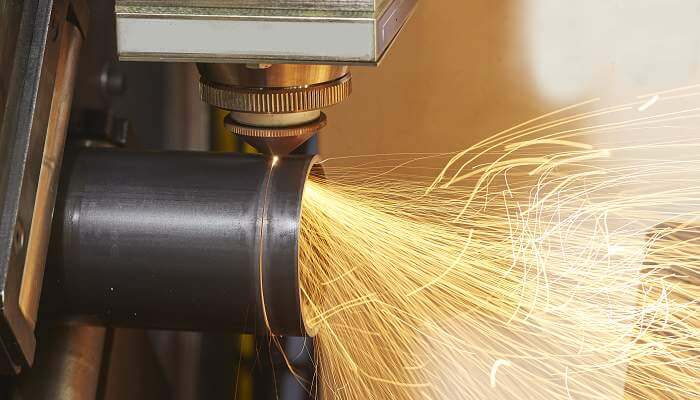

Advantages of SLT-RoundCut-SS Tube Laser line

  • No Saw Blade, Fiber Laser Technology
  • Cuts any Material Hardness or Tensile Strength Material
  • Lowest Cost per Cut
  • Minimal Setup Time + High Output
  • Minimal Tube Deformation and Surface Marks
  • Low Maintenance

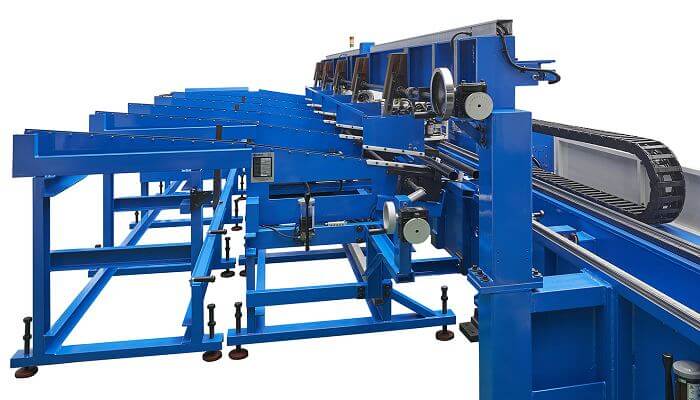

Full Automation,Standard with Rack Loader. Optional 6.5 meters Bundle Loading Magazine (MB6), and 8.5 meters (MB8)

  • Full Automation: Auto Loading + Feeding + Laser Cutting + Unloading
  • Dedicated System for Straight Cutting of Round Tubes
  • May use Oxygen, Nitrogen or Compressed Air for Cutting
  • Especially Suitable for Mild Steel, High Tensile Strength, and Stainless Tubes
  • Single or Multiple Cutting Lengths + Multiple Output Outlets
  • SOCO i2 Controls for Extensive DB of Cutting Parameters and Data Management

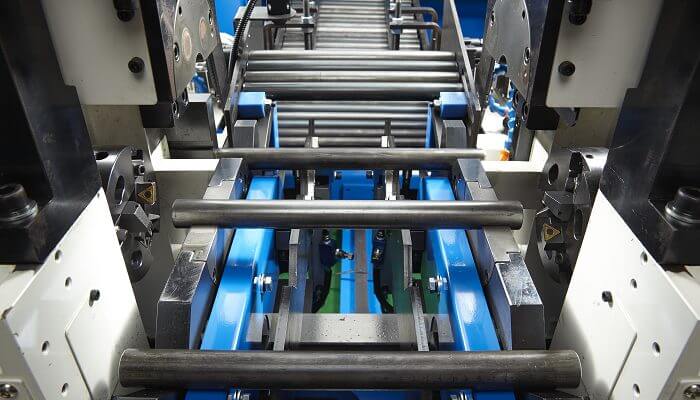

As part of an automation cells, It may connected to other SOCO Systems for

  • Deburring
  • Chamfering
  • Washing
  • Measuring
  • Stacking

i2® (intelligent interface) System

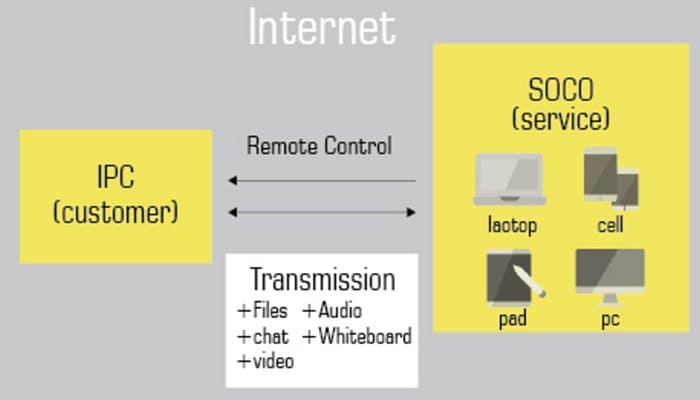

SOCO IRMS (Internet Remote Monitoring System)

  • True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS or Android) from any location with Internet Access.
  • Actual Screen + Real Time Access to laser tube cutting file, with full ability to see, edit and troubleshoot all user created programs.
  • Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  • Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Item;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login;

  • Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions
  • Webcam Ready for Video Monitoring (Optional)

Video

Technical Data

Model Cutting Capacity (mm) Axis Laser Source (Standard) Interested
SLT-RoundCut-SS OD12 ~ 101.6 4 1kW Inquiry
