Features

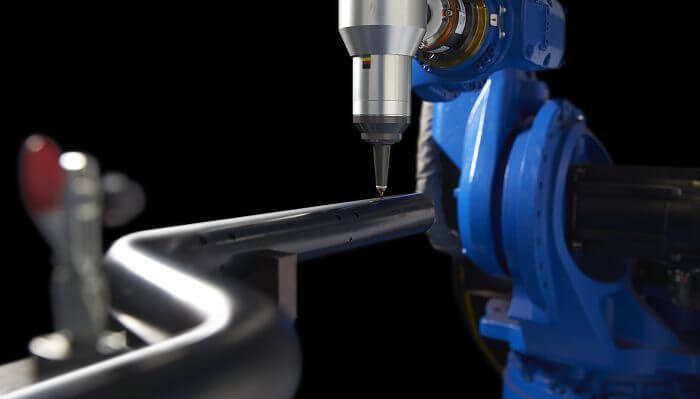

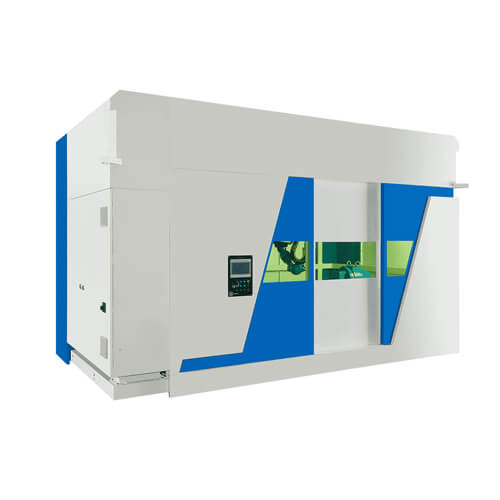

3D Robot Laser Cutting Machine

• 3D Laser Cutting for Formed Parts and irregular tubes
• The optical fiber laser source improves cutting efficiency and reduces material loss
• 7 Axis System (optional 2 Axis Rotary)
• 1kW ~ 3kW

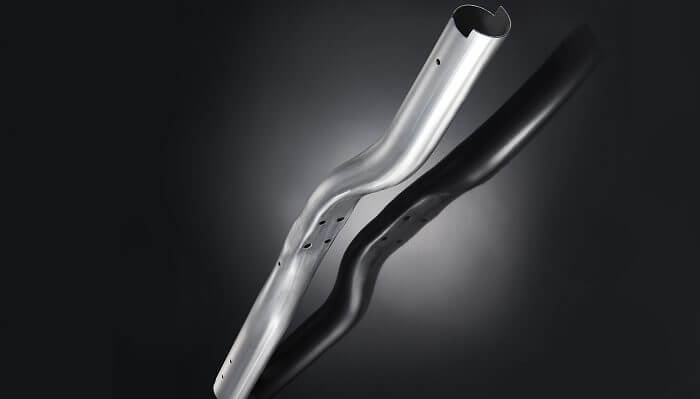

3D Laser Tube Cutting for Bent Tube

• Full cover to ensure the safety of the operators
• The laser head is equipped with a stable height detection to ensure perfect cutting and regular workpieces
• The air pressure valve can be adjusted from 0 to 20 bars
• The software can monitor the cutting rate and adjust it depending on the thickness of the material
• The advanced CAD-CAM system imports 3D files and translates them into cutting paths

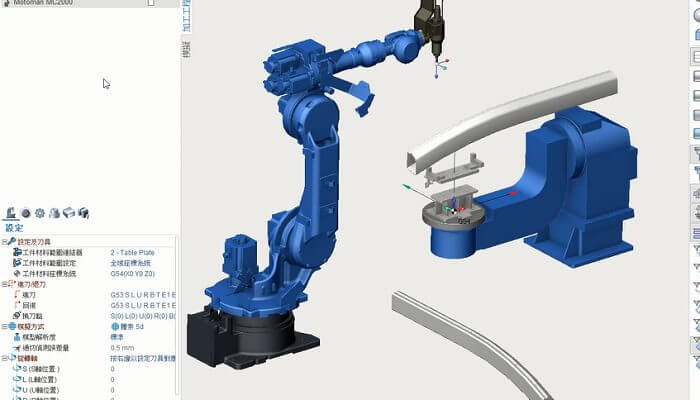

Sprutcam CAD-CAM

• 3D models can be directly imported and converted into cutting paths. The interference simulation can be used to optimize the path, speed, and parameter settings.
• The complete path can be finalized locally, without re-drawing and importing.

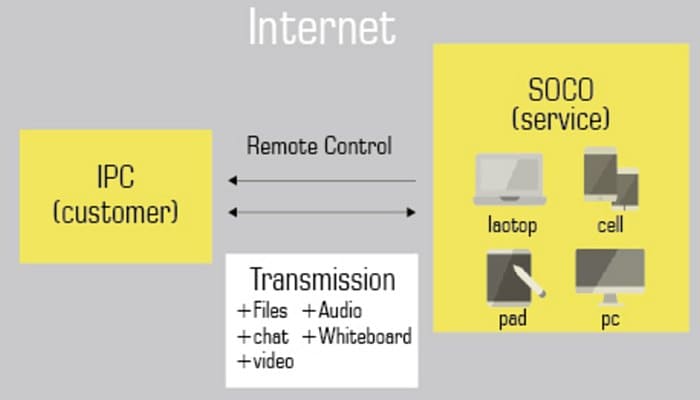

SOCO IRMS (Internet Remote Monitoring System)

• True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer, or laptop (Windows, iOS, or Android) from any location with Internet Access.
• Actual Screen + Real-Time Access to laser tube cutting file, with full ability to see, edit and troubleshoot all user-created programs.
• Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
• Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login;

• Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions.
• Webcam Ready for Video Monitoring (Optional).
