Single Tube End + Solid Bar Chamfering

Products Description

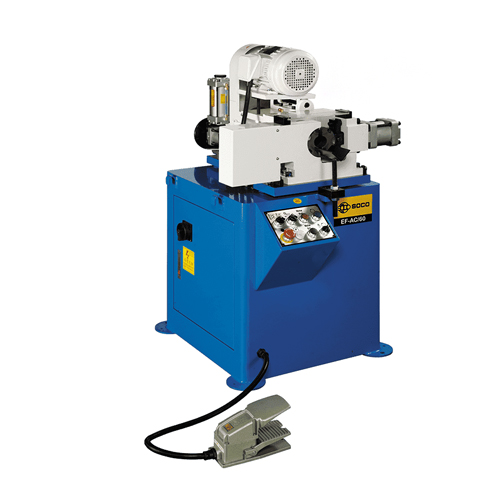

The SOCO EF Chamfering series extends up to OD 115 mm capacity. These semi-automatic machine models offer different functions, such as specific clamps for each tube size or universal clamping jaws for various tube sizes (EF-AC/115-U Type). The process is suitable for Single Tube End chamfering and is available for solid bars.

Categories: , Tags: , ,

Features

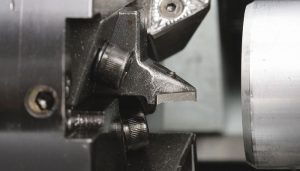

Single Tube End + Solid Bar Chamfering

  • Clean tube surface preparation before welding
  • Precise Angular Chamfers for Fittings and Assembly
  • Inside + Outside Chamfering + Facing
  • Radius (Round) Chamfering
  • Centering and Outside Chamfer for Solid Bars

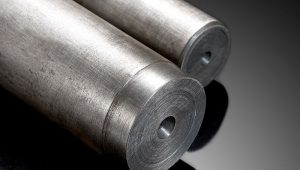

Optional chamfering seats for centering (Solid bar)

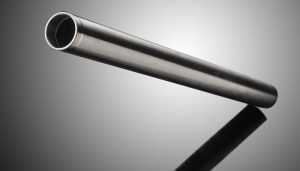

Typical Operations :

  • Chamfering inside, outside and face the end of tubing and pipe
  • Solid bar outside chamfering (Centering by request)
  • Radius Chamfering

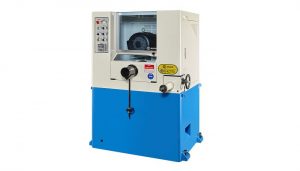

CE Safety Cover

Technical Data

Model Tube Working Capacity (mm) Bar Working Capacity (mm) Interested
EF-AC60 OD 16 ~ 60 OD 9 ~ 25 Inquiry
EF-AC80 OD 16 ~ 80 OD 9 ~ 50 Inquiry
EF-AC115 OD 16 ~ 115 OD 9 ~ 60 Inquiry
EF-AC115-U OD 16 ~ 115 OD 9 ~ 60 Inquiry
