Long Lengths
(150 ~ 3000 mm)

Products Description
With the SOCO DEF series for long lengths, it is possible to simultaneously chamfer both ends of a tube, with up to 3000 mm in working length. With an optional BTM (Bundle Loading Magazine), the machines offer a completely automatic loading, feeding, and chamfering process. This range is suitable for a clean and even chamfer on both ends of the tube, with chamfering both inside and the outside (I/O) and face of the material or making a radius (round) chamfer. It may also be used for outside chamfering of solid bars.

DEF-FA/32-Double offer Double Tubes Chamfering + Cleaning Per Cycle.

Categories: ,

Features

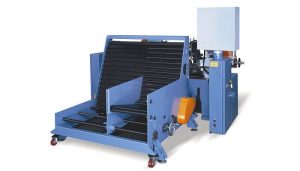

Double Tubes Ends Chamfering Machine. Fully Automatic Loading, Feeding and Chamfering.

  • Fully automatic chamfering system, with 2 types of loading magazine:
  • Rack – Sliding Magazine ( Standard )
  • BTM – Bundle Loading Magazine (Optional )
  • External and internal chamfering with facing in one process for double sides of tube, with optional radius (round) chamfering.
  • Optional motorized length adjusting and RPM speed inverter

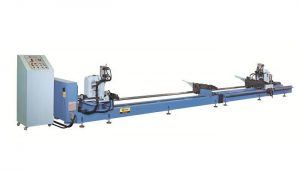

Max. 3000mm Working Length

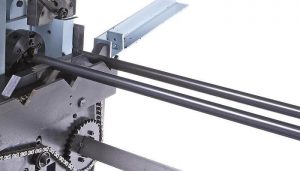

Ability to inside + outside ( I/O ) chamfer as deep as 15mm or angles as small as 15 degrees

  • Inside + Outside Chamfering
  • Facing
  • Centering
  • Deep Chamfering
  • Radius Chamfering

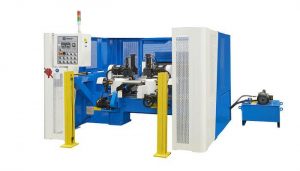

CE Safety Cover

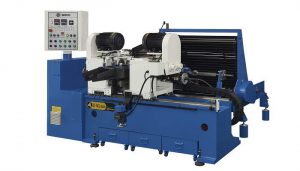

DEF-FA/32-Double
Double Tubes Chamfering + Cleaning Per Cycle

DEF-FA/32-Double
Double Tubes Chamfering + Cleaning Per Cycle

Video

Technical Data

Model Working Length (mm) Working Capacity (mm) Number of Tubes Processed Per Cycle Interested
DEF-FA32-Double 270 ~ 1000 OD 12.7 ~ 32 2 Inquiry
DEF-FA52 150 ~ 2000 OD 16 ~ 52 1 Inquiry
DEF-FA76-V 250 ~ 3000 OD 16 ~ 76 1 Inquiry
DEF-FA90 300 ~ 2000 OD 50 ~ 90 1 Inquiry
