Products Description
The BDB-70 is capable of deburring various shapes of profiles such as round, rectangular, square, and oval tubes with extreme speed and high efficiency. The specific V shape guides way can rotate the Square and Rectangular tubes and deburred, “Flat” guides way for Round tubes. Built-in Air Blowing system for cleaning the outside and inside of the tubing.

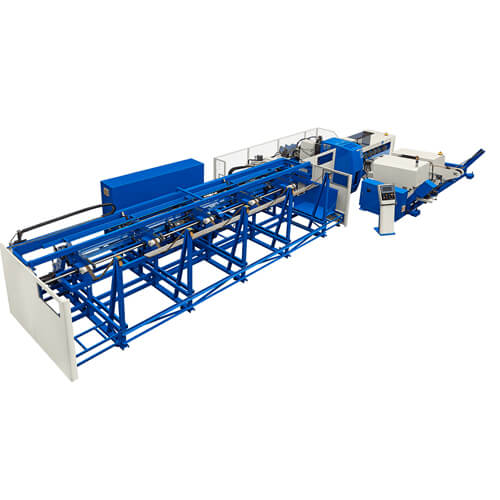

The working capacity of BDB-70 is up to 76 mm for round tubing, and 70 mm x 70 mm for square. May be connected to SA-78NCE for an Automation Cell (SA-78NCE INLINE). The process of SA-78NCE INLINE is integrated with Automatic Loading, Feeding, Cutting, Deburring, Washing, Length Measuring, and Stacking.
V shape Guide Way for Square and Rectangular Tubing

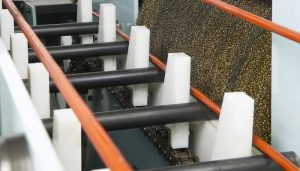

Flat Guide Way for Round Tubing

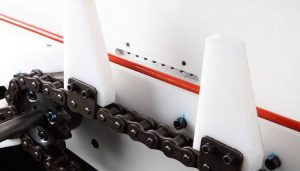

Tube Air Cleaning (Internal + External)

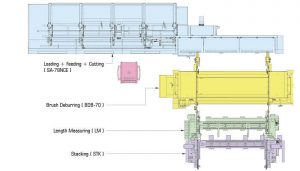

May connected to SA-78NCE be an Automation Cell (SA-78NCE INLINE). The process of SA-78NCE INLINE is from Automatic Loading, Feeding, Cutting, Deburring, Washing, Length Measuring and Stacking
| Model | Working Length (mm) | Round Tube Capacity (mm) | Square Tube Capacity (mm) | Interested |
|---|---|---|---|---|
| BDB-70-1 | 150 ~ 1000 | OD12.5 ~ 76 | 12.5 X 12.5 ~ 70 X 70 | Inquiry |
| BDB-70-2 | 150 ~ 2000 | OD12.5 ~ 76 | 12.5 X 12.5 ~ 70 X 70 | Inquiry |
| BDB-70-3 | 150 ~ 3000 | OD12.5 ~ 76 | 12.5 X 12.5 ~ 70 X 70 | Inquiry |
| BDB-70-4.5 | 150 ~ 4500 | OD12.5 ~ 76 | 12.5 X 12.5 ~ 70 X 70 | Inquiry |
