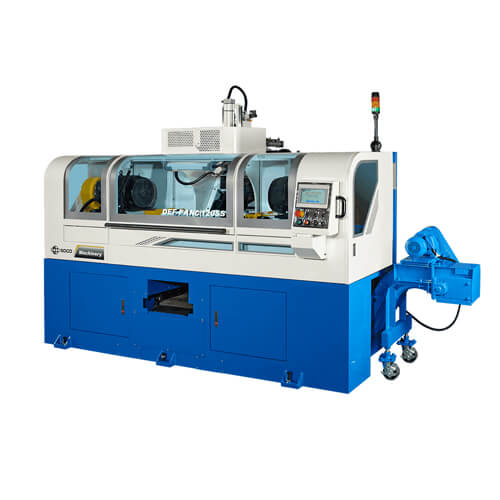

OD 60 ~ 127 mm
DEF-FANC127SS

Products Description
With the SOCO DEF-FANC series for double tube ends chamfering, it is possible to simultaneously chamfer both ends of a tube. Equipped with an optional BTM (Bundle Loading Magazine), the machines offer a completely automatic loading, feeding, and chamfering process. This range is suitable for a clean and even chamfer on both ends of the tube, with chamfering the inside + outside (I/O) and face of the material or making a radius (round) chamfer. It may also be used for outside chamfering of solid bars.

  • NC control: The cutting head feeding axis by servo control
  • RPM speed inverter (Standard)
  • Automatic chip conveyor
  • Touch Screen

Categories: ,

Features

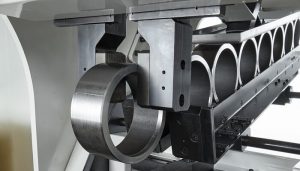

NC Control : Cutting Head Feeding Axis by Servo Control

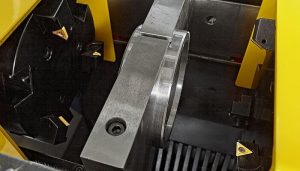

Double Tube Ends Chamfering Machine,Typical Operations :

  • Chamfering Double Inside, Outside and Face Ends of Tubing and Pipe
  • Solid bar outside chamfering (Centering by request)
  • Radius Chamfering

Bundle Loading Magazine ( BTM )
Fully automatic chamfering system, with 2 types of loading magazine:

  • Rack – Sliding Magazine (Standard)
  • BTM – Bundle Loading Magazine (Optional)

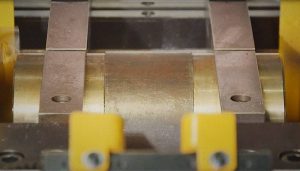

Chip Breaking Function

  • Chip Breaking Function to prevent long burrs.
  • Cycle Times as short as 3 seconds.

Video

Technical Data

Model Working Length (mm) Working Capacity (mm) Loading Magazine Interested
DEF-FANC127SS 25 ~ 250 OD 60 ~ 127 Rack (Standard) / BTM (Optional) Inquiry
