Coil
Bending + Cutting + Forming

Products Description
This Production Cell can work with tubes up to OD 19 mm in copper and OD 8 mm for wires; the minimum OD capacity is 4 mm for both tube and wire.

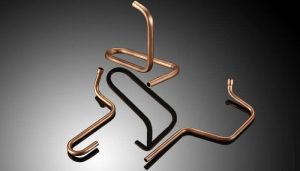

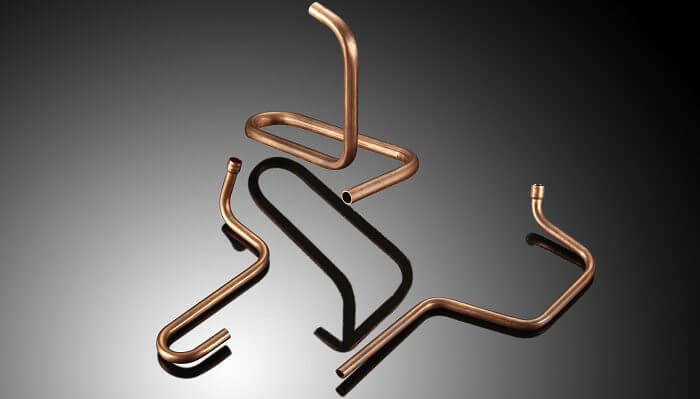

This Production Cell is specially designed for the production of small and medium diameter tubing and wire and is widely used in industries such as Automotive Air-Conditioning, Heating, Refrigeration Systems, and Home Air-Conditioning.

Features

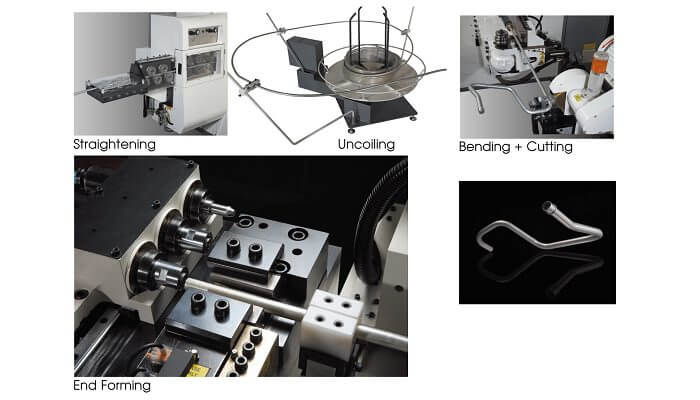

Uncoiling + Straightening + End Forming + Tube and Wire Bending + Cutting

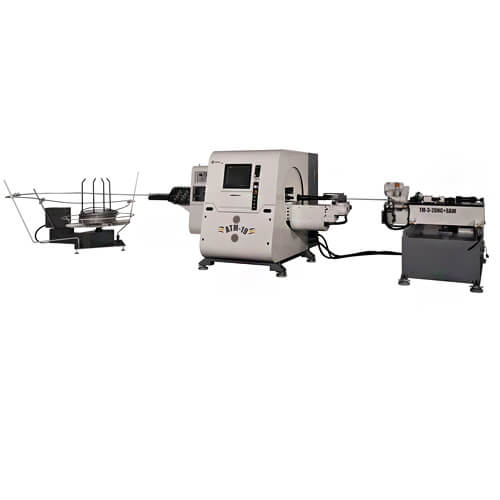

The new SOCO ATM-19, 5 axis CNC Tube and Wire manufacturing line can combine different working processes for a complete Production Cell.  The processes include:
  1. Uncoiling
  2. Straightening
  3. Tube and Wire Bending
  4. End Forming
  5. Tube and Wire Cutting

Uncoiling + Straightening + End Forming + Tube and Wire Bending + Cutting

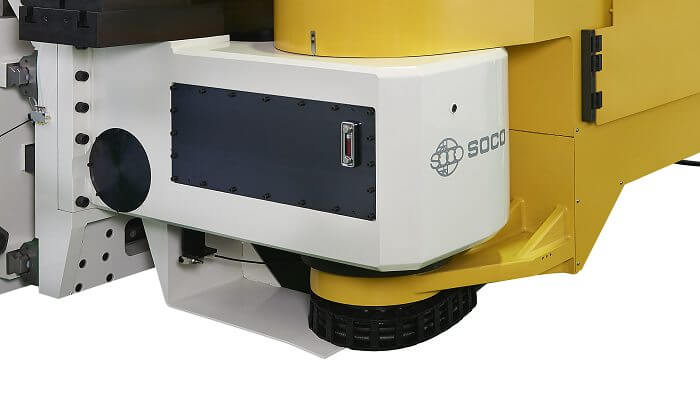

Advanced DGT. Most efficient and stable bending process.

  1. Chain free transmission
  2. Built-in gearbox with direct connection to electric servo
  3. Highest transmission performance (90%+ efficiency)
  4. High bending accuracy ( +- 0.05° ~ +-0.1° )
  5. Maximum Working Area = Minimal Interference
  6. Elongated neck for superior clearance
  7. Side carriage and bending head

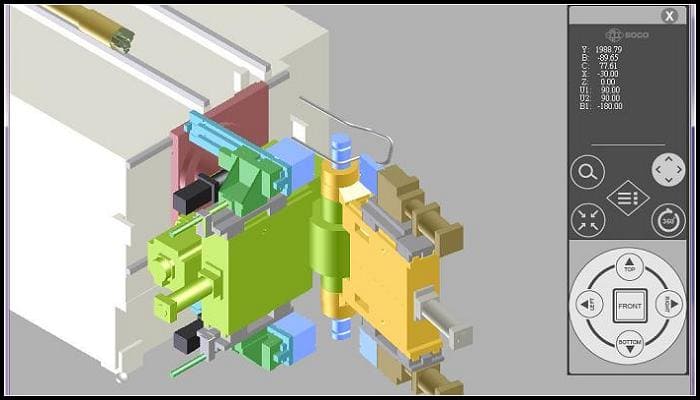

SOCO i2 Controls, Software and Operation Interface

  1. Automatic spring back compensation
  2. Recapturing function for short lengths
  3. XYZ and YBC coordinates conversion
  4. 3D display and rotation of bending parts
  5. Mirroring and image reversal of parts
  6. Windows platform
  7. Self-diagnostics + Error messages display
  8. Connection and auto tube bending compensation to CMM systems
  9. Overmode + Teach Mode
  10. Live remote monitoring by internet
  11. Remote troubleshooting
  12. Connection though PC, Mobile Phone and Tablet
  13. Tube bending interference and collision simulator
  14. SOCO CAD Reader
  15. VRM : Variable Radius Measuring System

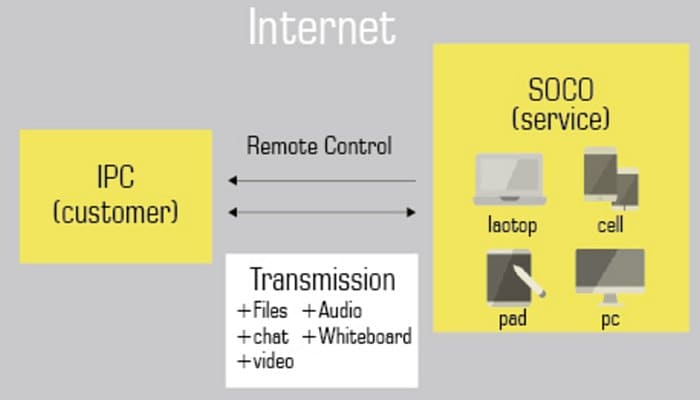

SOCO IRMS (Internet Remote Monitoring System)

  1. True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS or Android) from any location with Internet Access.
  2. Actual Screen + Real Time Access to tube bending file, with full ability to see, edit and troubleshoot all user created programs.
  3. Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  4. Maintenance Scheduling Systems
  • Advanced Table with Detailed Maintenance Items
  • Customizable Alarms for Daily, Weekly, Quarterly and Yearly Items
  • Maintenance Records connected to User Login

5.  Built-in Self-diagnostics + Error messages
    display + I/O Tables with Descriptions
6.  Webcam Ready for Video Monitoring
     (Optional)

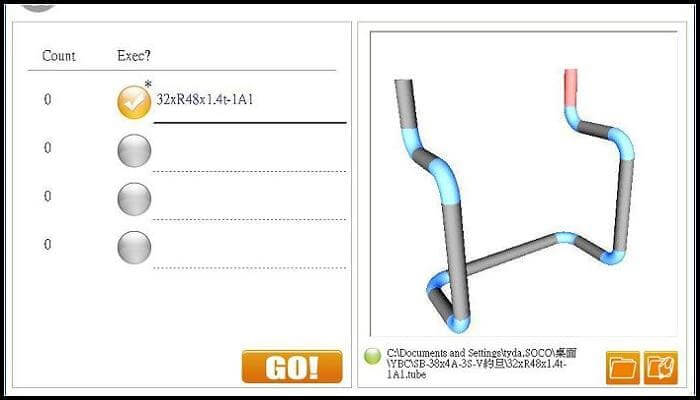

3D Display and Rotation of Tube Bending Parts

  1. XYZ and YBC coordinates conversion
  2. Mirroring and image reversal of parts

Video

Technical Data

Model Bending Capacity (mm) Axis Stacks Interested
ATM-19 OD 4 – 19 7 Inquiry
