Car Headrests

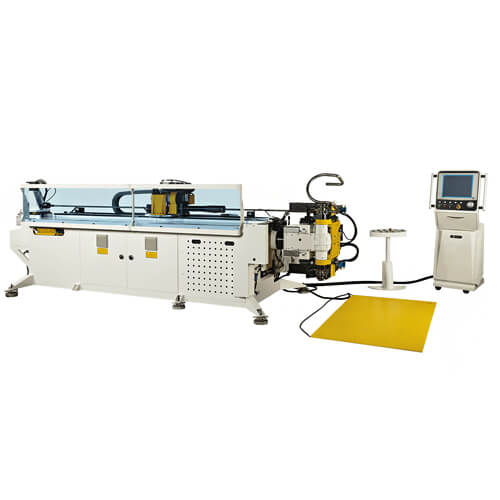

Left + Right Tube Benders
Designed for Car Headrests

Products Description
SOCO’s All-Electric tube benders series can offer high-performance solutions in tube processing. The Tube Bending Systems can be integrated with Automatic Loaders (AF), Groove and Seam Detection systems, and Automatic Unloaders (AUL) for full automation.
5 servo-electric controlled axes:

  1. Feeding (Y)
  2. Rotation (B)
  3. Bending (C)
  4. Bending Head Horizontal Movement (X)
  5. Bending Die Rotation (C1)
  • Left and Right Tube Bending capabilities in the same cycle
  • DGT technology – Direct Gear Transmission Bending for high speed and accuracy
  • Easy Programming – Setup a part in the same way as a single directional bend
  • Elongated bending neck for maximum working area
  • 5 Electric servo-controlled axes
  • 2 speeds + early mandrel extraction
  • Automatic Groove Detection System to ensure the tube in the right direction before bending (Optional)
  • Automatic mandrel lubrication
  • Touch Screen with IPC (Industrial PC)
  • Multi-stacks + Multi-Radius
  • Independent pressure die system for each bending stack
  • Optional Automatic Loaders (AF), Groove and Seam Detectors, and Automatic Unloaders (AUL)

Categories: ,

Features

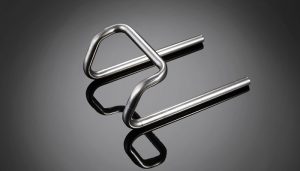

Left and Right Tube Bending Technology for Car Headrests

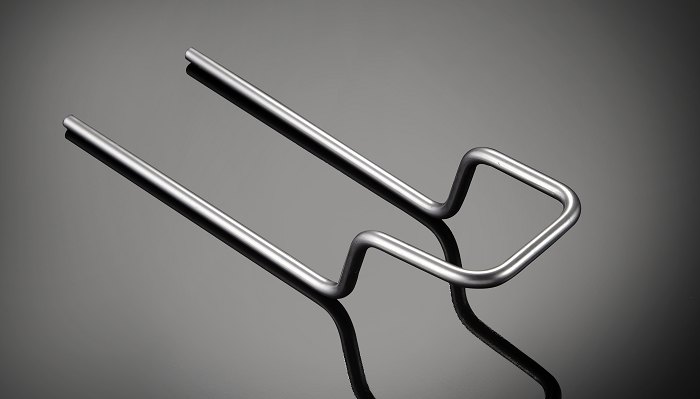

Left and Right Tube Bending Technology for Car Headrests

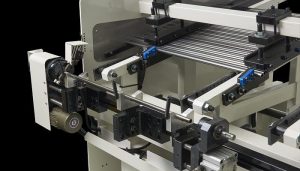

Auto Loader Seam Detector ( Optional )

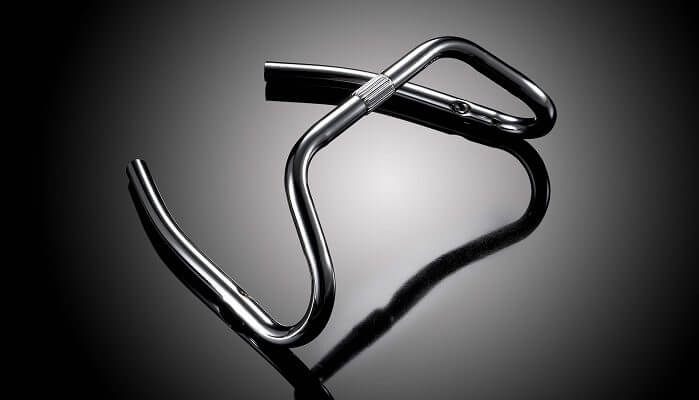

Tube Bending + Punching (Optional)

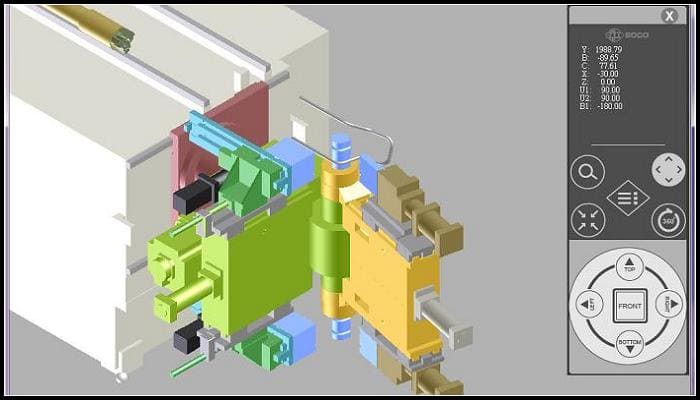

SOCO i2 Controls, Software and Operation Interface

  1. Automatic spring back compensation
  2. Recapturing function for short lengths
  3. XYZ and YBC coordinates conversion
  4. 3D display and rotation of tube bending parts
  5. Mirroring and image reversal of parts
  6. Windows platform
  7. Self-diagnostics + Error messages display
  8. Connection and auto tube bending compensation to CMM systems
  9. Overmode + Teach Mode
  10. Live remote monitoring by internet
  11. Remote troubleshooting
  12. Connection though PC, Mobile Phone and Tablet
  13. Tube bending interference and collision simulator
  14. SOCO CAD Reader
  15. VRM : Variable Radius Measuring System

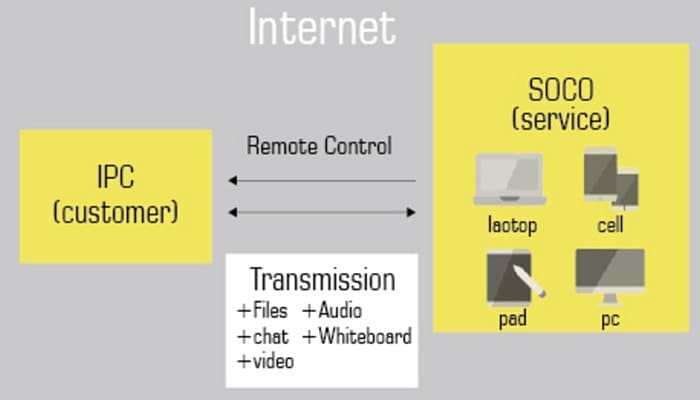

SOCO IRMS (Internet Remote Monitoring System)

  1. True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS or Android) from any location with Internet Access.
  2. Actual Screen + Real Time Access to tube bending file, with full ability to see, edit and troubleshoot all user created programs.
  3. Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  4. Maintenance Scheduling Systems
  • Advanced Table with Detailed Maintenance Items
  • Customizable Alarms for Daily, Weekly, Quarterly and Yearly Items
  • Maintenance Records connected to User Login

5.  Built-in Self-diagnostics + Error messages
    display + I/O Tables with Descriptions
6.  Webcam Ready for Video Monitoring
     (Optional)

Video

Technical Data

Model Bending Capacity (mm) Axis Stacks Interested
SB-Headrest Master OD 19.05 5 3 Inquiry
