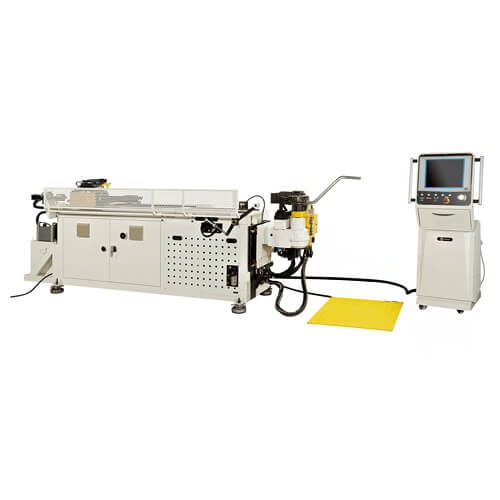

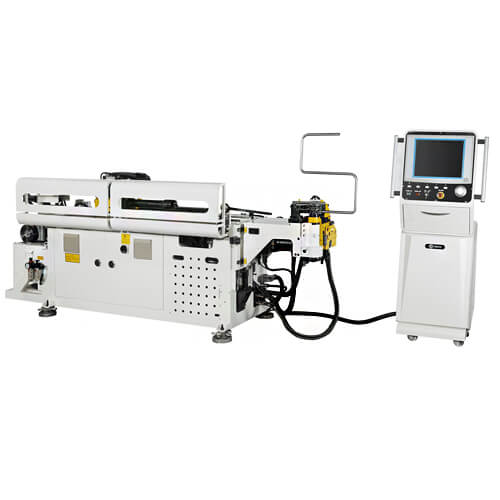

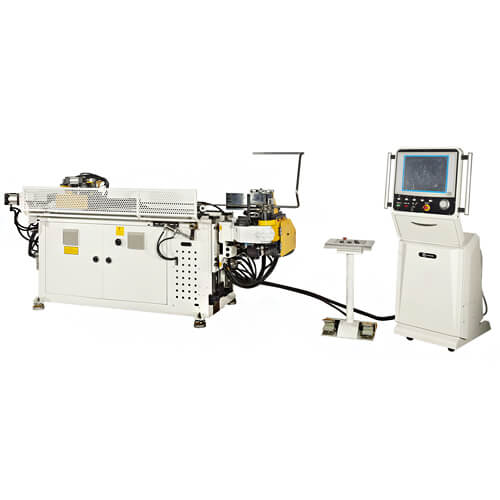

Hybrid Electric
(A series)

Products Description
Equipped with 3 – 4 electric CNC axes, multiple tube bending stacks, and the unique DGT technology, this line of SOCO tube benders can offer one of the highest performance solutions available in the market.
3 – 4 Electric Axes​

  • SOCO’s unique DGT technology
  • Side positioned bending head and carriage
  • Centralized lubrication for sliding area
  • Automatic mandrel lubrication
  • SOCO i2 controls software
  • Single or multi-stacks
  • Independent pressure die system for each tube bending stack
  • Wiper die seat and lubrication

Features

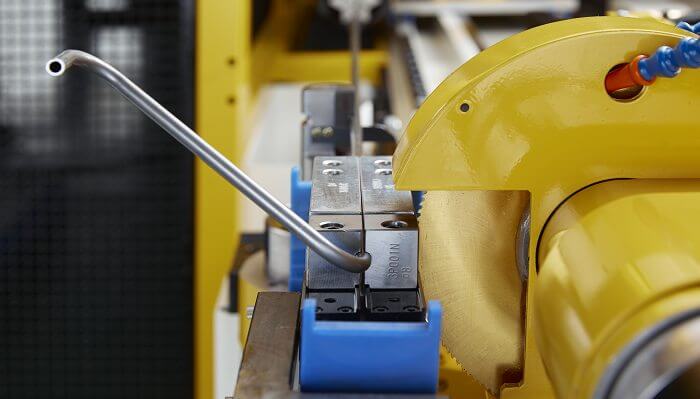

Tube Bending + Cutting Cell

It can be integrated with Automatic Loaders (AF, AFM, Robots) and Automatic Unloaders (AUL, Robots) for full automation. This tube bender series can offer one of highest performance solutions available in the market.

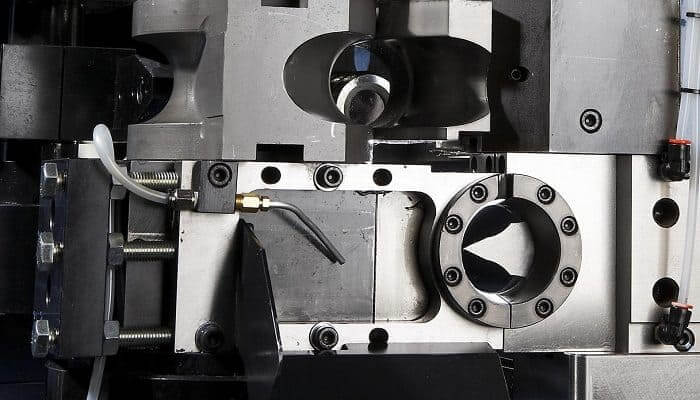

2C – The SOCO DBS System

  • The Double Blades Shearing System allows for automation of bending and cutting processes in one machine, from a single tube
  • This system creates minimum cutting deformation, enabling the finished part to pass to the next process without having to calibrate or deburr it
  • The software allows programming up to 4 different parts in the same stock material, maximizing utilization of the complete tube.

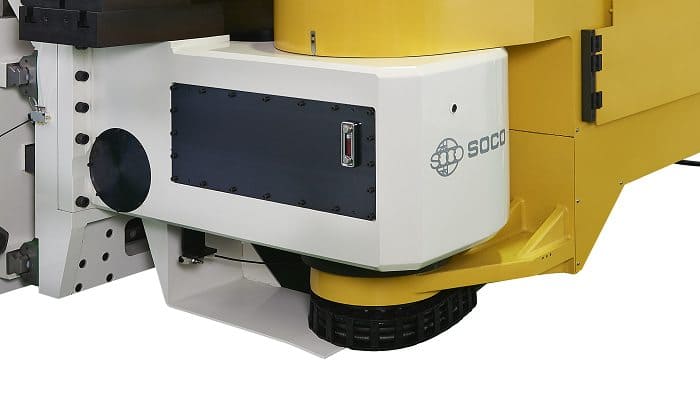

Advanced DGT

  • Chain free transmission.
  • Built-in gearbox with direct connection to electric servo.
  • Highest transmission performance (90%+ efficiency).
  • High bending accuracy (+/- 0.05° ~ +/-0.1°)
  • Maximum Working Area and Minimal Interference.
  • Elongated neck for superior clearance
  • Side carriage and bending head.

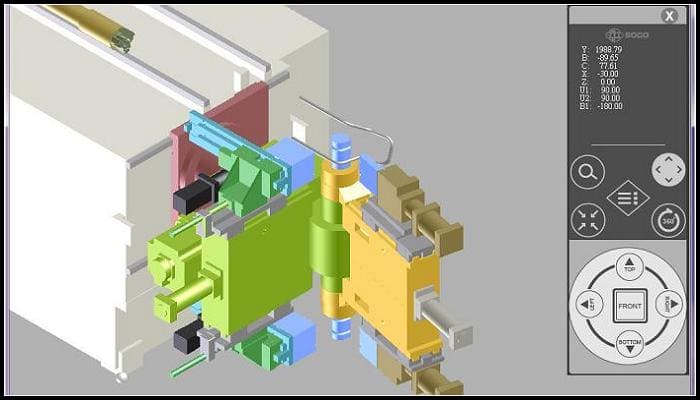

SOCO i2 Controls, Tube Bender Software and Operation Interface

  • Automatic springback compensation
  • Recapturing function for short lengths
  • XYZ and YBC coordinates conversion
  • 3D display and rotation of bending parts
  • Mirroring and image reversal of parts
  • Windows platform
  • Self-diagnostics + Error messages display
  • Connection and Auto compensation to CMM systems
  • Overmode + Teach Mode
  • Live remote monitoring by internet
  • Remote troubleshooting
  • Connection through PC, Mobile Phone and Tablet
  • Tube Bending interference and collision simulator
  • SOCO CAD Reader
  • VRM: Variable Radius Measuring System

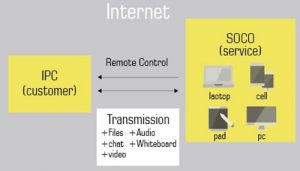

SOCO IRMS ( Internet Remote Monitoring System )

  • True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer, or laptop (Windows, iOS, or Android) from any location with Internet Access.
  • Actual Screen + Real-Time Access to tube bending file, with full ability to see, edit and troubleshoot all user-created programs.
  • Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  • Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login.

  • 5.  Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions.
  • 6.  Webcam Ready for Video Monitoring (Optional).

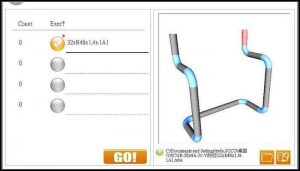

3D Display and Rotation of Parts

  1. XYZ and YBC coordinates conversion
  2. Mirroring and image reversal of parts

Video

Technical Data

Model Bending Capacity (mm) Axis Stacks Interested
SB-19X3A-2S OD 19.05 3 2 Inquiry
SB-30X4A-2S OD 30 4 2 Inquiry
SB-39X3A-1S OD 38.1 3 1 Inquiry
SB-39X4A-2S OD 38.1 4 2 Inquiry
SB-51X4A-2S OD 50.8 4 2 Inquiry
SB-63X4A-2S OD 63.5 4 2 Inquiry
SB-80X4A-2S OD 76.2 4 2 Inquiry
SB-90X4A-2S OD 88.9 4 2 Inquiry
SB-100X4A-2S OD 101.6 4 2 Inquiry
SB-131X4A-2S OD 127 4 2 Inquiry
