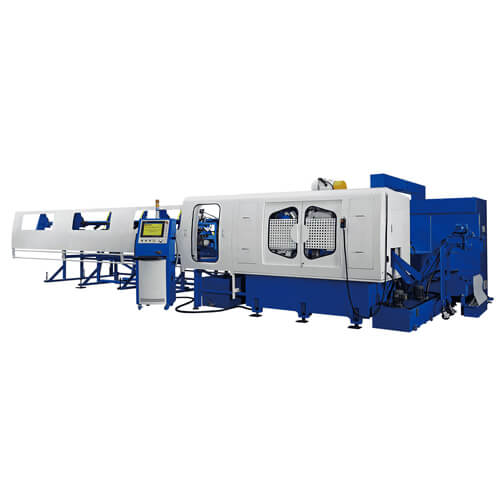

Tube + Bar Machining Center<br>(SA-65/2)

Tube + Bar Machining Center
(SA-65/2)

Products Description
Combination of 4 processes in 1 machine for Tubes and Solid Bars：

  • Tube Cutting
  • Machining (Chamfering, Facing, Centring)
  • Washing
  • Length Measuring (AM System – Optional)

Additional Machining Units may be added for：

  • Threading
  • Turning
  • Tapping
  • Drilling
  • Equipped with MA6 (Sliding Loader) or MBA6 (Bundle Loader)
  • 5 – 7 CNC servo-controlled axis and equipped with IPC interface
  • Tube cutting capacity up to OD 65mm and length range of 25 mm – 350 mm
  • SOCO i2 Software (see description)
  • Automatic first and crop-cut separation
  • Separation of Working vs. Rejected Pieces when using AM System
  • Simultaneous operation of all 4 stations

Categories: , Tags: , ,

Features

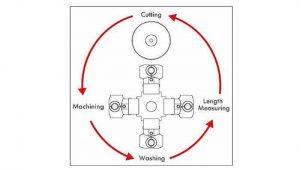

4 Processes in 1 Machine. Tube Cutting + Machining + Washing + Length Measuring

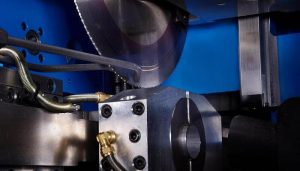

Tube cutting capacity up to OD 65 mm and length range of 25mm – 350mm

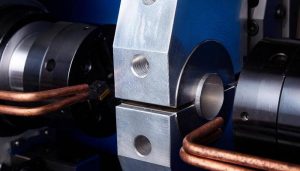

Additional Machining Units may be added

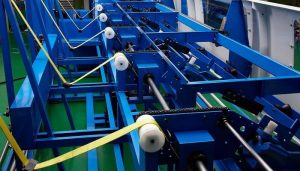

Equipped with MA6 (Sliding Loader) or MBA6 (Bundle Loader)

Video

Technical Data

Model Cutting Capacity (mm) Cutting Length (mm) Loading Length (mm) Interested
SA-65/2 OD 12 ~ 65 25 ~ 350 3000 ~ 6500 Inquiry
