Serpentine
Tube Bender for Serpentine
Shapes

Products Description

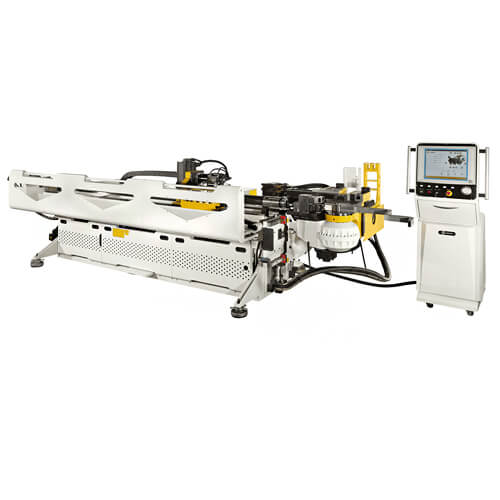

A series of Pipe Benders combined with 4 electric CNC axes, multiple pipe bending stacks, and the advanced DGT technology, the Tube Benders A series (Pipe Bending Machine) can offer the highest performance solutions, bringing accuracy, flexibility, and high production.

  • With SOCO’s unique DGT technology
  • Rack pinion feeding
  • Side positioned bending head and carriage
  • Elongated bending neck
  • Electric servo-controlled axes
  • Centralized greasing for sliding area
  •  2 speeds, early mandrel extraction
  • Automatic mandrel lubrication
  • Touch Screen with IPC (Industrial PC)
  • Single or multi-stacks
  •  Independent pressure die system for each bending stack
  • Wiper die seat and lubrication
  • 63 mm, 80 mm and 90 mm range may be equipped with SOCO DBS system (2C – Double Blades Shearing) (Optional)

Features

Tube Bender for Serpentine Shapes


SOCO i2 Controls, Software and Operation Interface

  1. Automatic spring back compensation
  2. Recapturing function for short lengths
  3. XYZ and YBC coordinates conversion
  4. 3D display and rotation of bending parts
  5. Mirroring and image reversal of parts
  6. Windows platform
  7. Self-diagnostics + Error messages display
  8. Connection and auto tube bending compensation to CMM systems
  9. Overmode + Teach Mode
  10. Live remote monitoring by internet
  11. Remote troubleshooting
  12. Connection though PC, Mobile Phone and Tablet
  13. Tube bending interference and collision simulator
  14. SOCO CAD Reader
  15. VRM : Variable Radius Measuring System

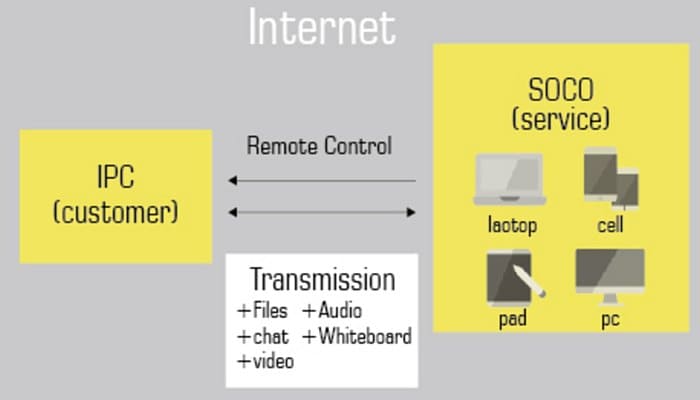

SOCO IRMS (Internet Remote Monitoring System)

  1. True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer or laptop (Windows, iOS or Android) from any location with Internet Access.
  2. Actual Screen + Real Time Access to tube bending file, with full ability to see, edit and troubleshoot all user created programs.
  3. Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  4. Maintenance Scheduling Systems
  • Advanced Table with Detailed Maintenance Items
  • Customizable Alarms for Daily, Weekly, Quarterly and Yearly Items
  • Maintenance Records connected to User Login

5.  Built-in Self-diagnostics + Error messages
    display + I/O Tables with Descriptions
6.  Webcam Ready for Video Monitoring
     (Optional)

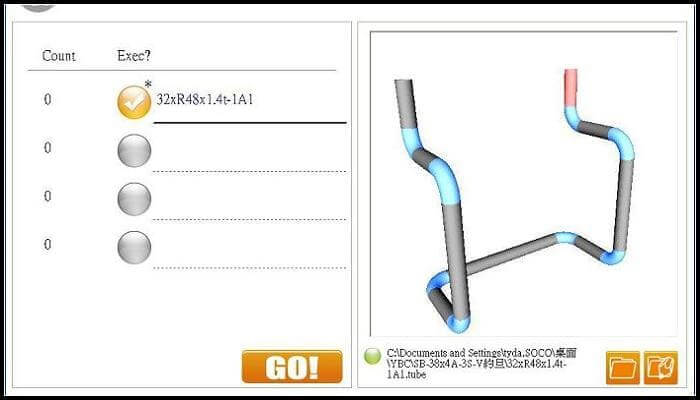

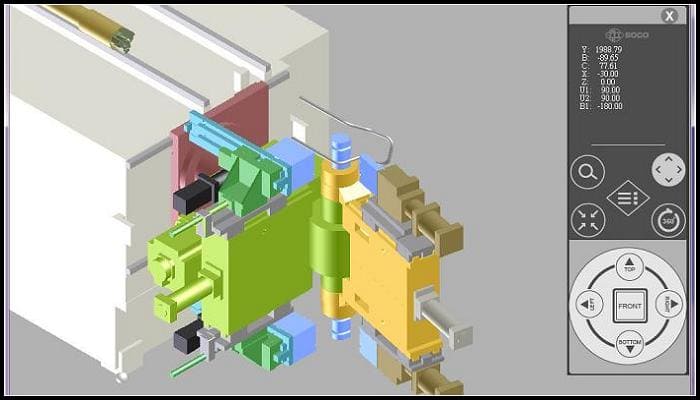

3D Display and Rotation of Tube Bending Parts

  1. XYZ and YBC coordinates conversion
  2. Mirroring and image reversal of parts

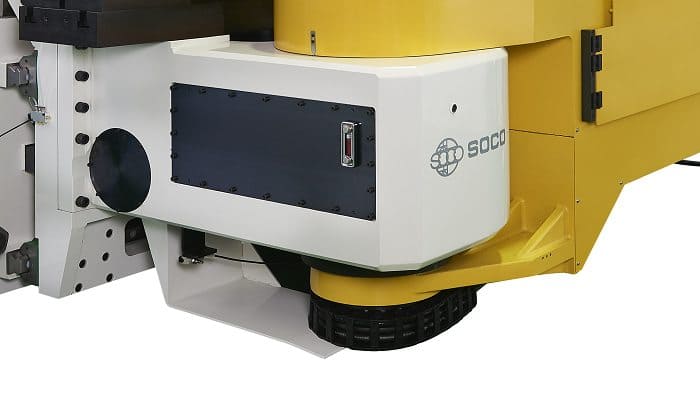

Advanced DGT

  1. Chain free transmission
  2. Built-in gearbox with direct connection to electric servo
  3. Highest transmission performance (90%+ efficiency)
  4. High bending accuracy ( +- 0.05° ~ +-0.1° )
  5. Maximum Working Area = Minimal Interference
  6. Elongated neck for superior clearance
  7. Side carriage and bending head

Video

Technical Data

Model Bending Capacity (mm) Axis Stacks Interested
SB-39x4A-1S-SERP OD 38.1 4 1 Interested
