Features

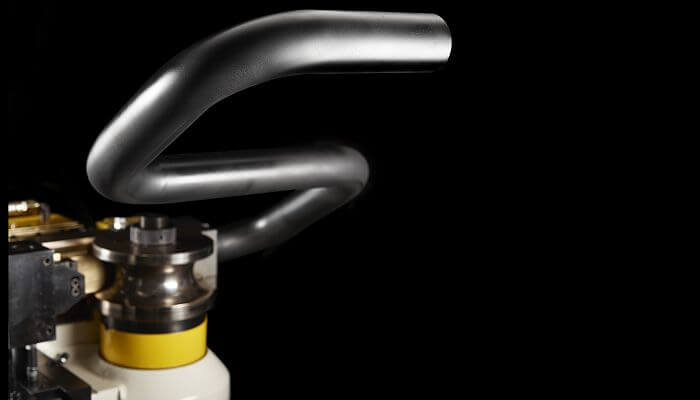

CNC 2 Axis with NC Hydraulic Bending, Capacity up to OD 168mm

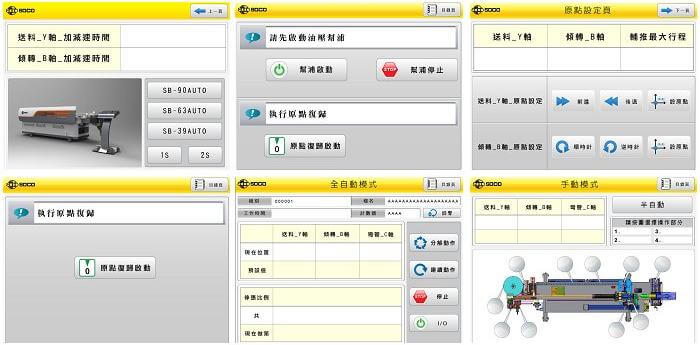

AUTO series : SOCO i2 Controls, Software and Operation Interface
- Touch screen system
- Data input by XYZ or YBC coordinates
- Data storage and editing for multiple files

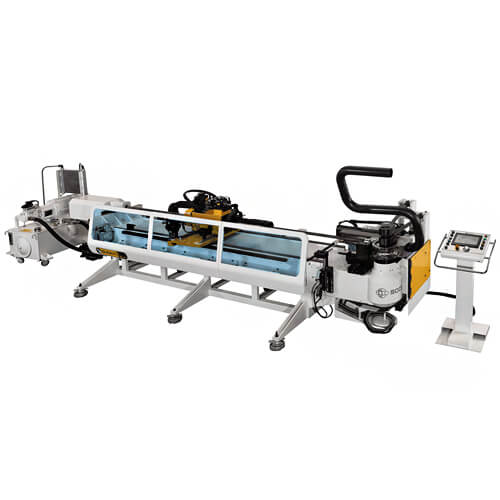

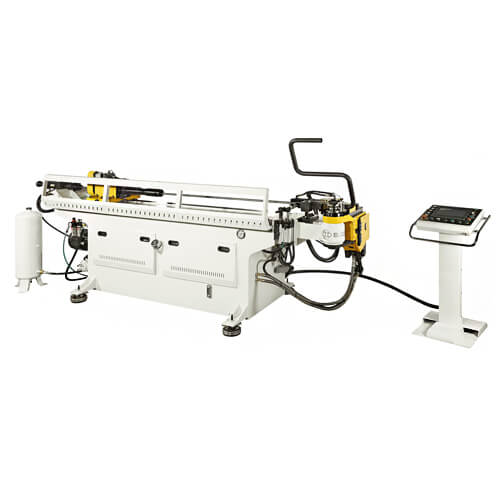

2 + 1 Hydraulic
(AUTO + 2B series)
Products Description
CNC 2 Electric Axis Tube Bending Machine
Hydraulic Tube Bending up to OD 168 mm
- CNC pipe bending machines with a capacity up to OD 168 mm.
- Fully Automatic and Cost-Effective.
- This Pipe Bending line is equipped with 3 programmable axes:
– Feeding – Electric Servo;
– Rotation – Electric Servo;
– Tube Bending – Hydraulic (NC).
AUTO series machine features :
- Hydraulic pressure die assist for every bending stack.
- Equipped with Wiper, clamping, and pressure die seats.
- Programmable early mandrel extraction system.
- Touch screen system.
- Electric servo-controlled feeding and rotation axis to ensure high precision (+- 0.2 mm and +- 0.2°) and reliability.
- NC programmable hydraulic bending precision up to +- 0.2°
- Automatic springback compensation.
- Data input by XYZ or YBC coordinates.
- Data storage and editing for multiple files.
- Automatic mandrel lubricating system (Optional).
