Brake Line
Tube Benders for Vehicle
Brake Lines

Products Description

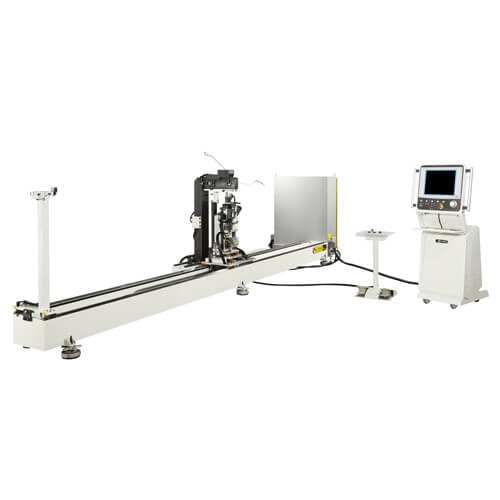

3 Electric Axis Tube Benders for Vehicle Brake Line
Tube Length capacity up to 5000 mm

The SOCO SB-Oil Tube Master is a dedicated CNC Brake Line Tube Benders. Designed for small tubing OD8 mm x 0.7t, especially Bundy Tubes and Hydraulic Lines. With multiple electric axes and a unique design to allow bending complex shapes and parts. It offers the most advanced solution ( Pipe Bending, Tube Bending ) and performance in its range.

Suitable for Brake Line tubing up to 4000 mm ( Optional 5000 mm ) and unparalleled Pipe Bending Speed. This CNC Pipe Bending Machines with optional Automatic Loading and Unloading Interface.
Maximum Working Area = Minimal Interference:

  • No interference with the machine bed
  • No conventional bending arm
  • No pressure die and wiper die seat interferences
  • Central clamping and rotation away from bending zone
  • Overmode (Arm Return Mode) capabilities

Software

  • May program up to 50 bends per part, with on-screen 3D part display
  • Data entry for both XYZ and YBC coordinates
  • Overmode (Arm Return Mode) offers flexibility to offset each bend and avoid bending interferences.
  • Integrated Automatic Bending Compensation and Reverse Engineering of bends when connected to CMM Measuring systems
  • Connection to Local Area Network (LAN) (Optional)

Categories: ,

Features

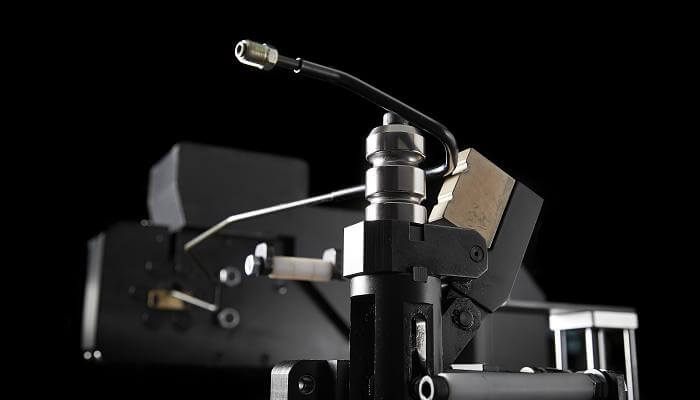

Automation Tube Bending Machine

  • 3 Electric-Axis controlling tube bending, tube rotation, and carriage movement
  • Automatic bending head reversal (left to right) when reaching the central clamping area, providing a fully automatic cycle for the entire bending process
  • Optional Automatic Loading and Unloading Interface

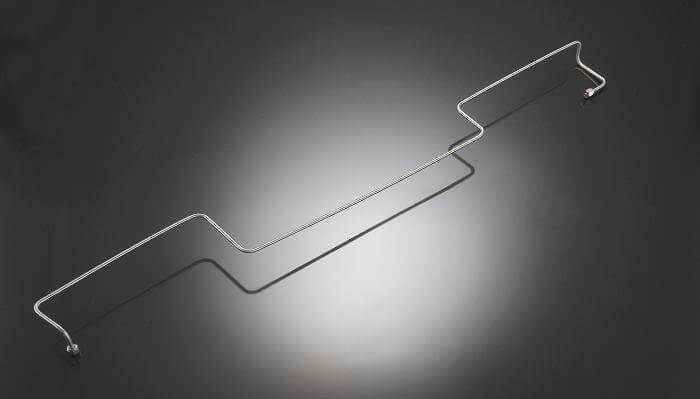

Suitable for brake line tubing up to 5000 mm

  • Centralized clamping and rotation system for true simultaneous moving of all axis
  • Lowest cycle times because minimal number of moving parts
  • Suitable for brake line tubing up to 4000 mm (Optional 5000 mm)

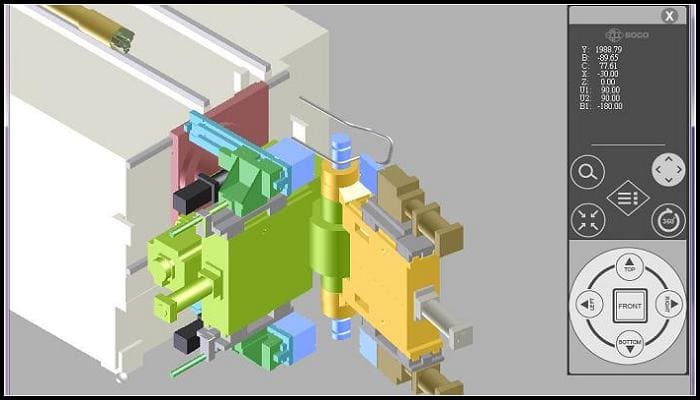

SOCO i2 Controls, Tube Bending Software and Operation Interface

  • Automatic spring back compensation
  • Recapturing function for short lengths
  • XYZ and YBC coordinates conversion
  • 3D display and rotation of bending parts
  • Mirroring and image reversal of parts
  • Windows platform
  • Self-diagnostics + Error messages display
  • Connection and auto tube bending compensation to CMM systems
  • Overmode + Teach Mode
  • Live remote monitoring by internet
  • Remote troubleshooting
  • Connection through PC, Mobile Phone and Tablet
  • Tube bending interference and collision simulator
  • SOCO CAD Reader
  • VRM: Variable Radius Measuring System

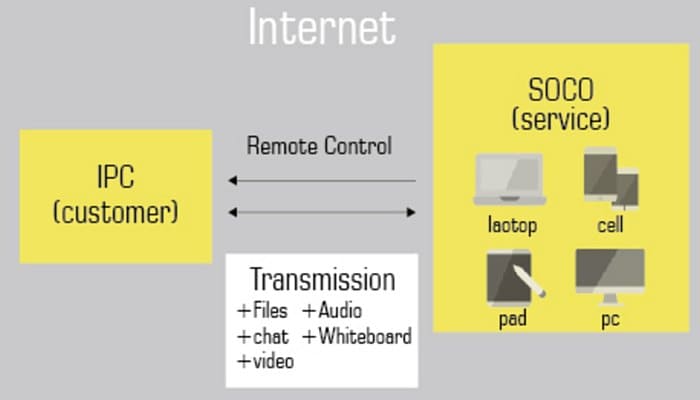

SOCO IRMS (Internet Remote Monitoring System)

  • True Remote Access from Anywhere:  Connect to i2 Controls using any mobile device, computer, or laptop (Windows, iOS, or Android) from any location with Internet Access.
  • Actual Screen + Real-Time Access to tube bending file, with full ability to see, edit and troubleshoot all user-created programs.
  • Live Remote Connection to Manufacturer and Service Support with Ability to Call + Message + Record at the same time.
  • Maintenance Scheduling Systems:

– Advanced Table with Detailed Maintenance Items;
– Customizable Alarms for Daily, Weekly, Quarterly, and Yearly Items;
– Maintenance Records connected to User Login.

  • Built-in Self-diagnostics + Error messages display + I/O Tables with Descriptions.
  • Webcam Ready for Video Monitoring (Optional).

Video

Technical Data

Model Bending Capacity (mm) Axis Max. Tube Length (mm) Interested
SB-Oil Tube Master OD 8 3 4000 (Optional 5000 mm) Inquiry
