Features

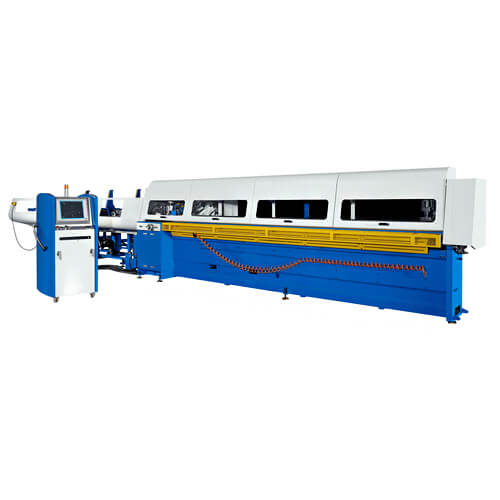

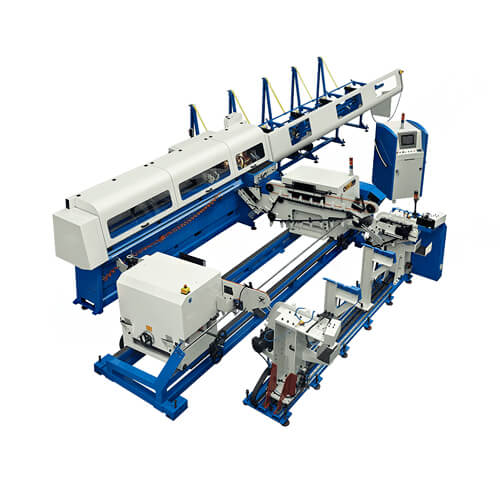

SOCO SA-78NCE tube cutting line brings you the latest technology in High Tensile Steel Tube Sawing

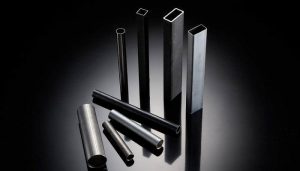

High Tensile Steel
The High Tensile Steel Tube is now widely applied in the global automotive market. In order to achieve higher fuel efficiency and lowering materials costs, thicker tubes and solid bars have been replaced by thin wall High Tensile tubes, which offer lower weight without compromising strength and safety. With a much higher tensile strength (80~120 Kg/cm²) than conventional steels (40~50 Kg/cm²), this material is highly employed in key areas of cars for structural (chassis) applications and impact protection.

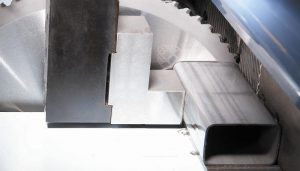

High Speed Sawing: The average sawing cycle times can be up to 4.5 seconds for most sizes.

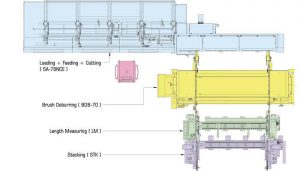

May connected to SOCO’s Tube Deburring Machine ( BDB-70 ) or Tube Chamfering Machine (FM-76V), Length Measuring
Length Measuring – LM-3000
- Length Measuring System with Programmable Interface and Touch Screen
- Length measuring tolerances of +/- 0.01mm.
- Motorized measuring length adjustment.
- Automatic separation against rejected parts
- Automatic Stoppage when rejected parts reach a set quantity
Stacking – STK-3000
- Suitable for Round Tubes and Profiles
- Standard with Safety System for Unloading of finished parts without production stoppage

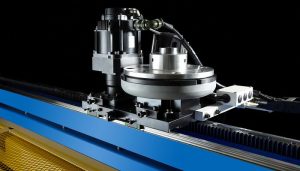

NC Length Stopper is optional (AS)
1 or 2 optional length stoppers with Digital Length Readout. NC Length Stopper is available in optional.
